4.8 KW High speed aluminium foil kraft paper bowl making machine with lid

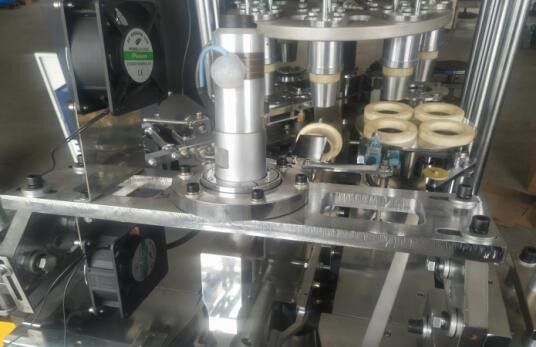

4.8 KW High speed aluminium foil kraft paper bowl making machine with lid is a an newest type of paper bowl machine, by auto feeding paper with multiple rows, paper anti-reverse device( make sure correct position), ultrasonic welding, oil fill, robot arm, paper tube, punch bottom, folding bottom, pre-heating, knurling, curling, and drop cups. Machine can make various size of bowls by changing mould.
Technical parameters
| Type | PF-BOWL |
| Bowl size: | 8-35oz (other customized size) |
| Max. paper bowl up diameter | 150 mm |
| Max. Paper bowl bottom diameter | 125 mm |
| Max. Paper Bowl height | 115 mm |
| Production capacity | 60-70 pcs/min |
| Power source: | 380V 50Hz(please inform us your power in advance) |
| Suitable Material: | 140-350g/m2 |
| Total Power: | 4.8 KW |
| Weight: | 1980KG |
| Machine size | 2350-1250-1900 mm |
| Air pressure | 0.6Mpa, 0.6 m3/minute |
Details
PLC control
The machine is more intelligent, the control is more precise, and the labor is greatly reduced.
Multiple cooling fans
Multiple cooling fans operate at the same time to increase heat dissipation and speed up cooling, ensuring that the machine works at an appropriate temperature
Automatic oil lubrication system
The machine automatically lubricates each part that needs to be lubricated through the copper pipe, which greatly saves labor
Advantage
1. PF-BOWL intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality; The integral steel body and the oil-drenching lubrication system ensure the normal and stable operation of the equipment for a long time;
2. The advanced high-precision cam drive and gear drive make each station accurate and accurate; Servo tracking paper feeding locks the size of the bottom paper of the cup, effectively saving raw materials;
3. The man-machine interface PLC system controls the long-term stable operation of the whole machine.
After Sale Service
1) 1 year warranty service.
2) Free replacement of parts within 1 year (free shipping).
3) Parts are provided free of charge within 2 years, but no free shipping.
4) We provide Operation & Maintenance CD.
5) When there is a problem with the machine, please take a video of the problem and send it to us.
6) We will arrange professionals to help you deal with it through video or document tutorials.
PACKAGE
| Package details | 70 pcs/min Disposable aluminum foil food paper bowl making machine |
| Package size | 2450 x 1350 x 2100 mm |
| Gross Weight | 2500 kg |
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
